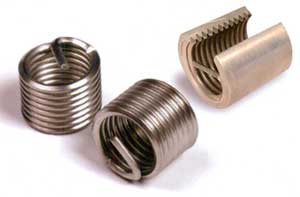

Thread Inserts



Thread inserts (recoil inserts) are the easy method for reparing damaged for repairing damaged threads, or creating stronger original threads in alloys and composit material in original equipment manufacture. Create stronger threads in most materials.

Made from corrosion resistant stainless steel.
Simplifies change over from unified to matric and vice versa.
Interchangeable with other brands of inserts and tooling.
Reduce thread wear.
Wide temprature tolerance

This versity makes recoil insert suitable for wide range of application.


The Thead Insert provides positive means for protecting and strengthning all tapped threads. The inserts are manufactured from 18-8 stainless steel (AISI -304 / DTD 734 A / AMS 7245 ) Or other space age materials conforming to internationally recignised Thread Inserts Specification DIN 8140-1 and other relevant standards

Our engineering process uses advanced facilities and rapis prototyping techniques to bring a given concept into reality. In order to make high quality GRIPCOIL inserts at reasonable price, our unit seekd the best balance between human resource and thier ergonomics and advanced automatic works centre.

  Thread Inserts




QUALITY IS THE KEY TO SUCCESS

We are committed to providing quality products to meet the eber changing meeds of our customers. We achieve this commitment by implementing the following objectives

• On time delivery • First time quality • Contimuous improvement of our processes and systems • Ensuring that our people are properly trained to be equipped to serve our customers

Our qualityprocess starts right with the product conception and goes well beyond its market introduction. No wonder our high quality standards stem from stringent purchase of raw materials to strict in house matching and sophisticated tooling techniques. It is little to say that our high quality standards are yours

Our quality efforts are certified to comply with ISO / TS - 16949:2009 and EN 9100:2003 standards



OUR PRODUCT RANGE


Available in two basic forms, free running or screw locking, Gripcoil Screw Thread insers are much lighter and less expensibe than any other equivalent type of screw thread insert. The compact size of Gripcoil inserts also ensure they can be incorporated into existing designs where no previous provision has been made.

The state of the art manufacturing facilities ensure that each of the 2 million inserts produced every month meet stringent qualty norms, Bouyant with positive customer feedback plans are in place to leverage the monthly production capacity to 3.5 million inserts shortly

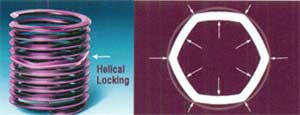

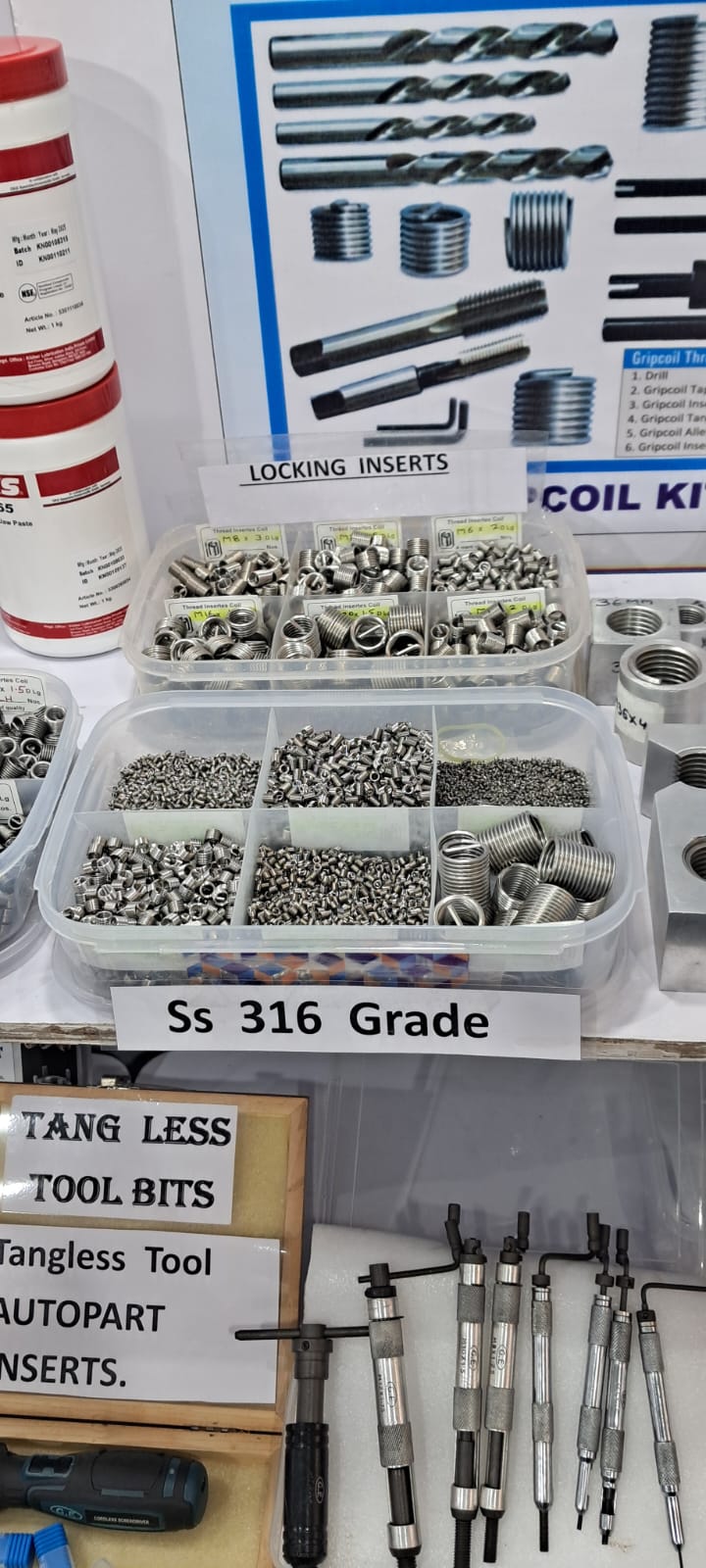

Free running & Screw locking type
UNC : 2-56 to 1"
UNF : 3-56 to 1"
Metric & sparkplug ISO: M1.6 to M45
BSW : 1/8 to 1"
BSP : 1/8 to 1"

Gripcoil wire thread inserts are available in five different lengths which are multiple of the diameters of particular insert. These are X the diamere 1D, 1.5D, 2D, 2.5D and 3D

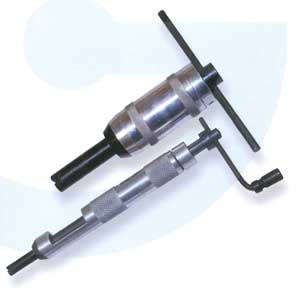

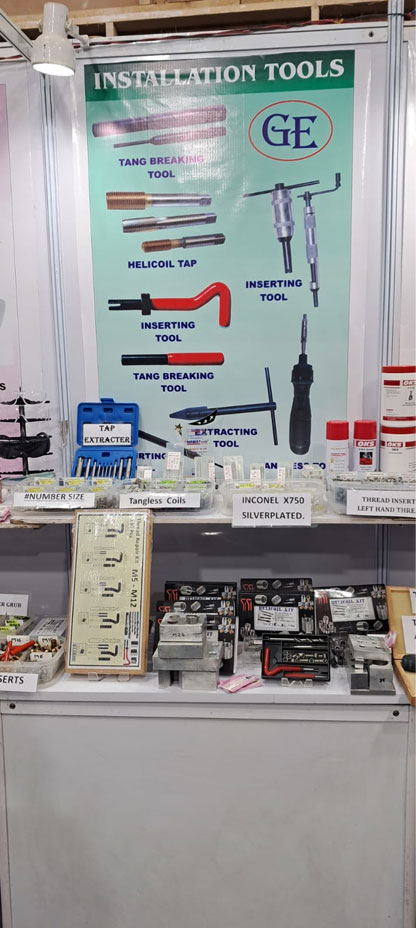

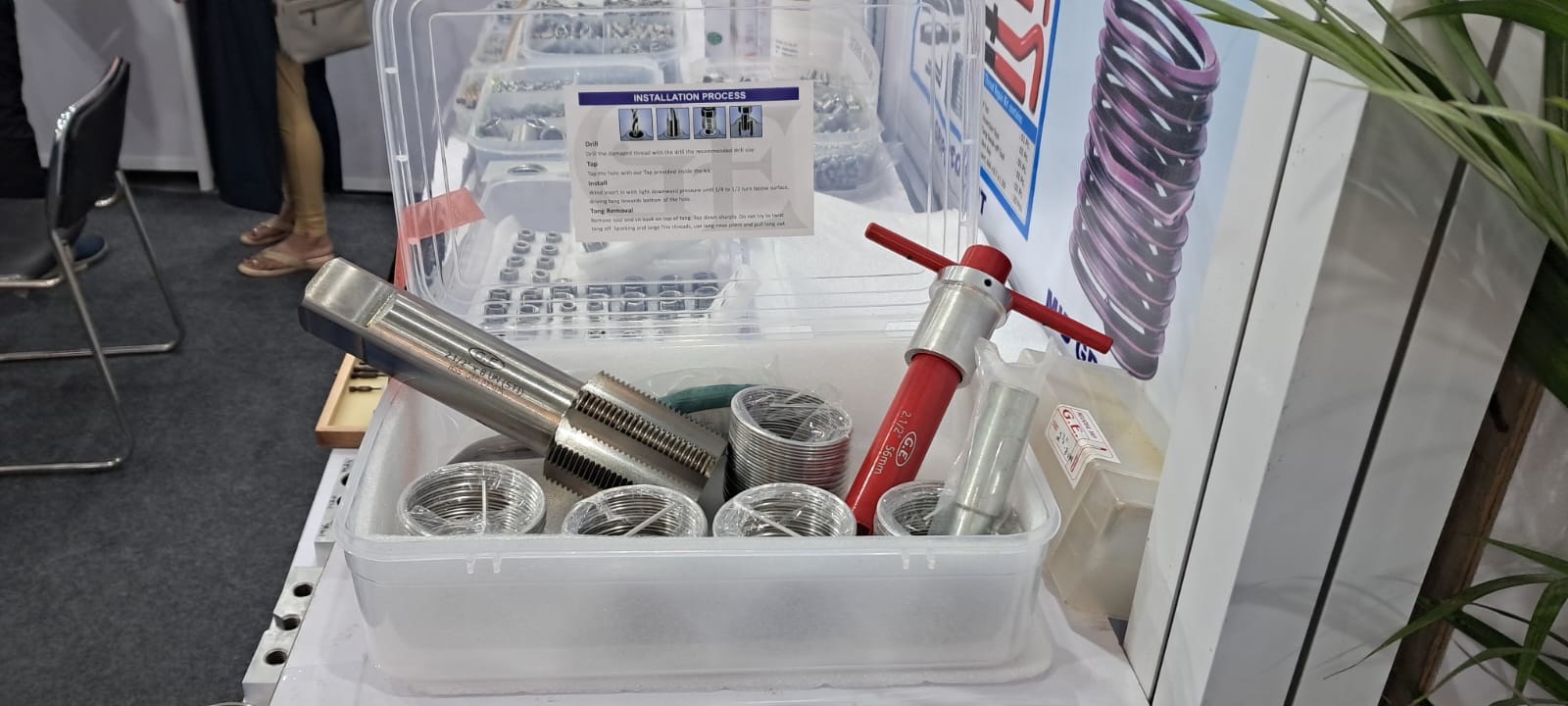

Installation tools & accessories
The Gripcoil Wire Thread Insert System includes a complete range of

• STI Hand & Machine Taps

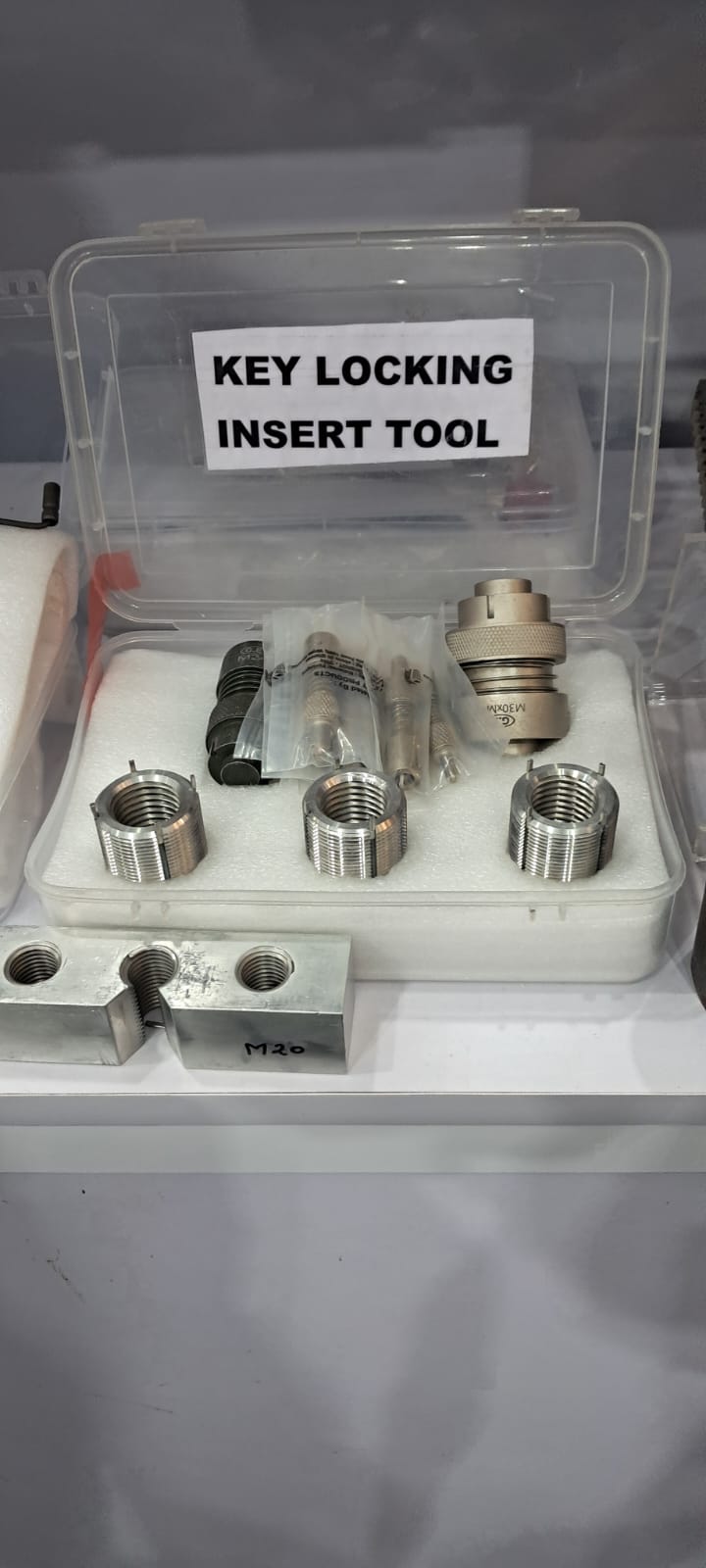

• Installation / Insertion tools
• Tang break off tools
• Extraction / removals tools
• Thread plug gauge

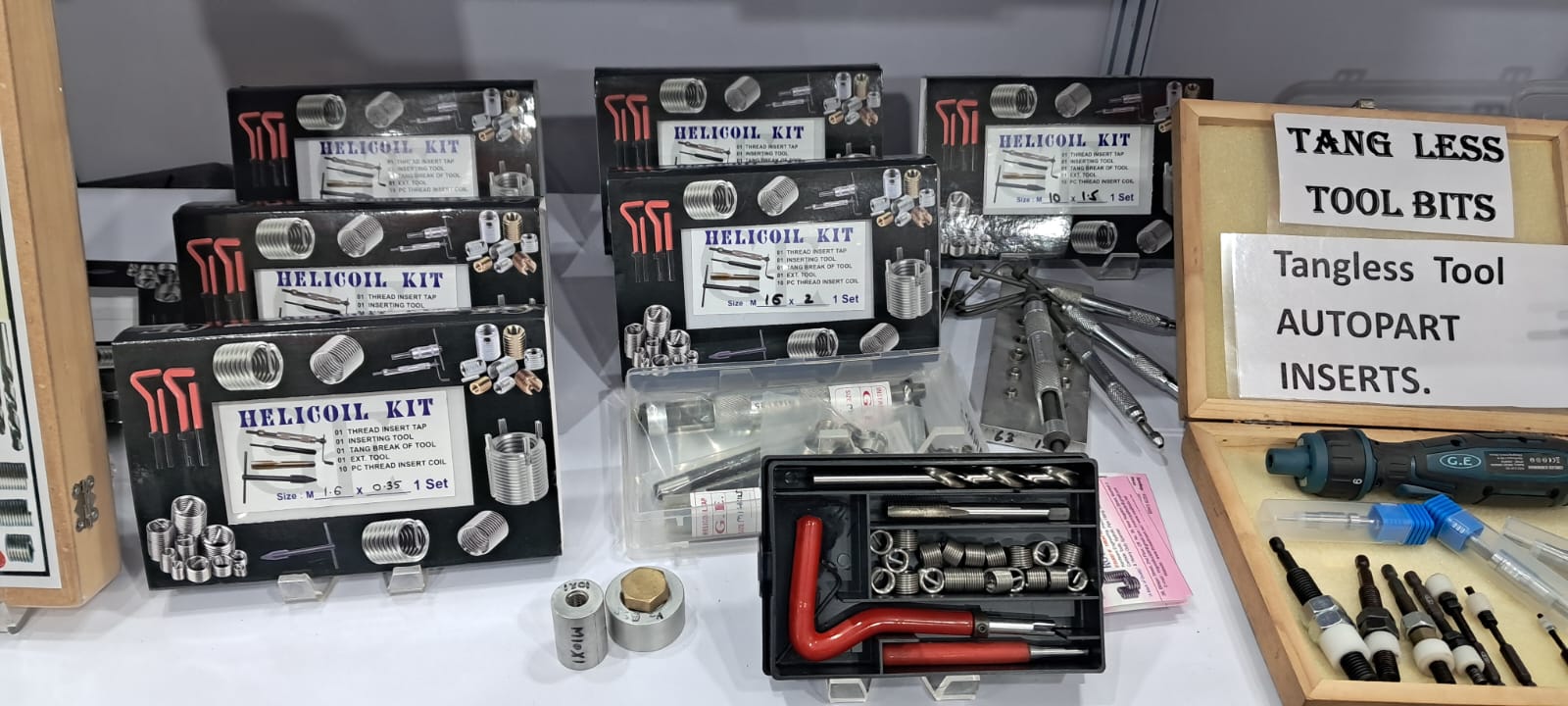

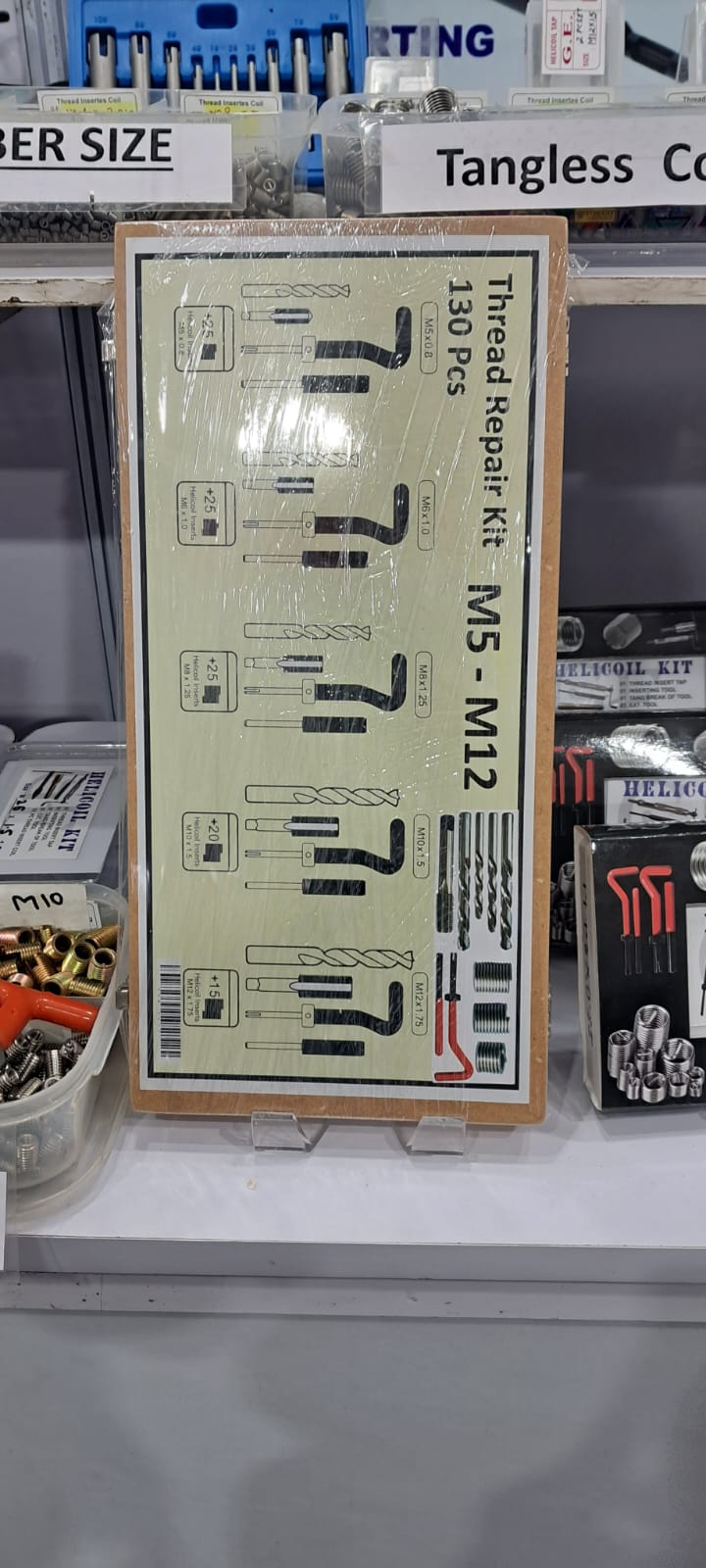

• Thread repair kits

Benefits of GRIPCOIL SCREW THREAD Inserts

• Better quality and performance while reducing overall product cost
• Create internal threads in which wear due to thread friction is virtually eleminated
• Useful in applications where repeated assembly & disassembly is required
• Protect tapped threads against failures due to stripping, seizing, corrosion and wear
• Create internal threads with greatly improved distribution of residual stress loading
• Compensate for pitch and flank angle errors
• Can generally be introduced into existing designs where no previous provisions has been made
• Make it possible to use thinner sections or lighter parent materials without sacrificing thread strength
